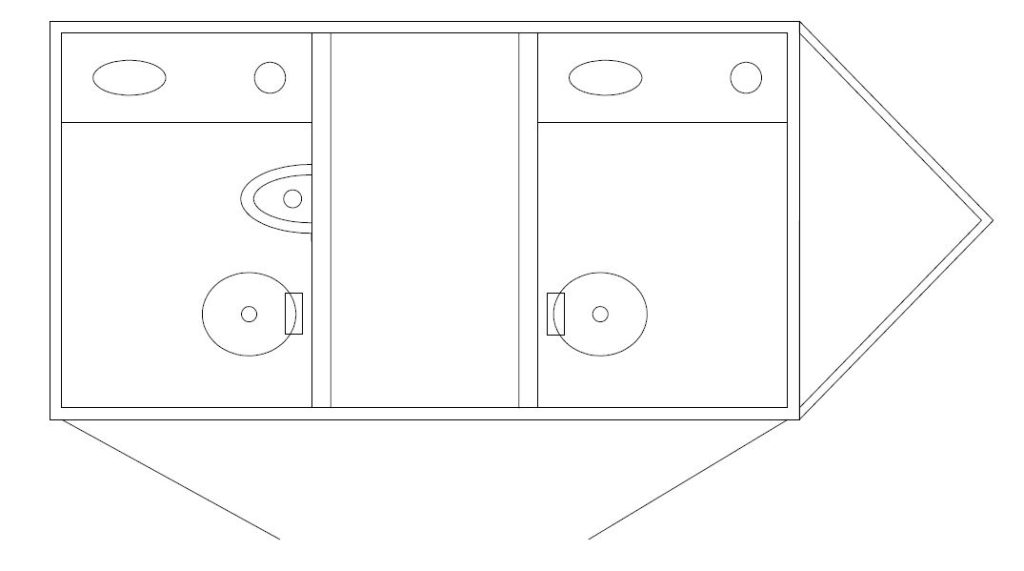

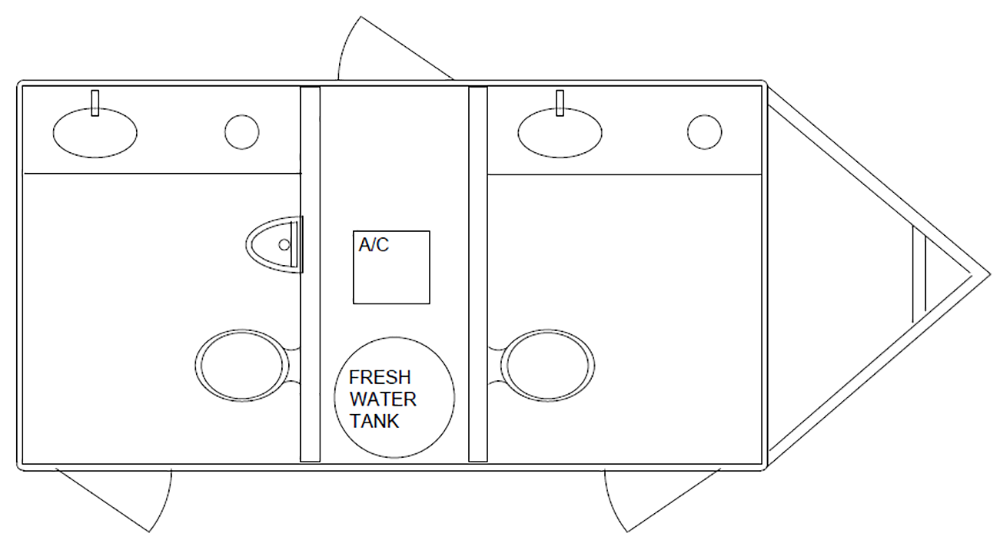

OI-212
| Overall Width | 98.5˝ |
| Overall Width Set-Up | 119.5˝ |
| Overall Length | 206˝ |
| Overall Height | 131.5˝ |
| Box Width | 76.5″ |
| Box Length | 144″ |
| Interior Height | 82.5″ |
| Curb Weight | 4020 lbs. |
| Tongue Weight | 580 lbs. |
| Fresh Tank Capacity | 105 gal. |
| Holding Tank Capacity | 390 gal. |
Interior Standard Features
- Smooth durable fiberglass interior on composite backer (no wood)
- 12 Volt LED lighting – (2) lights per room
- Lockable base cabinets
- Solid surface countertops with molded sinks
- Waste basket cut outs and waste baskets
- Self-closing commercial faucets
- Soap dispensers (shipped loose)
- Paper towel dispenser
- Toilet paper holders
- Ultra low water use ceramic bowl pedal flush toilets
- Waterless urinal (men’s restroom only)
- Sanitary Napkin receptacles (women’s restrooms only)
- Shatterproof mirrors
- Heavy duty door closers
- 1 Piece transit grade flooring on non-absorbent “Ever Floor”
- Climate control sensor inside restroom
Exterior Standard Features
- Large 32″ heavy duty entrance doors
- Occupancy lighting
- 1 Piece roof
- Smooth durable fiberglass exterior on composite backer
- Porch lights at all entry doors w/ switch in control room
- Fold down steps with swing-out grab handles
- 3″ quick connect waste tank access valve
- LED waste tank indicator
- 3/8″ HDPE waste tanks
- Large access door in rear for 1″ wash out plug
- City water connection
- 30 amp marine-style power cord
- Roof mounted Air Conditioner w/ heat strip
- Climate control center mounted in control room
- External Spray Port with 30′ hose and nozzle
- Insulated walls and ceiling
- Torsion axle
- Alum wheels with E-rated trailer specific tires nitro-filled
- Full license plate frame with light & screws
- Fresh water fill/diverter (either hydrates the unit or fills the fresh tank)
- Courtesy light above Control Room door
- E coated frame
- Powder coated aluminum trim
- 7k tongue jack
- Stabilizer jacks on all (4) corners – scissor jacks on the front and swing downs on the rear
*All information contained herein including, but not limited to, floorplan offerings, specifications, standards, and options are based on the latest information at the time of publishing. This information is subject to change at any time, without notice or obligation.
Proposition 65 for purchases in California
! WARNING: These products may contain chemicals known to the State of California to cause cancer and or/birth defects or other reproductive harm. for more information go to www.P65Warnings.ca.gov
