OI-414
| Overall Width | 98.5˝ |
| Overall Width Set-Up | 119.5˝ |
| Overall Length | 230˝ |
| Overall Height | 131.5˝ |
| Box Width | 76.5″ |
| Box Length | 168″ |
| Interior Height | 82.5″ |
| Curb Weight | 4780 lbs. |
| Tongue Weight | 740 lbs. |
| Fresh Tank Capacity | 150 gal. |
| Holding Tank Capacity | 480 gal. |

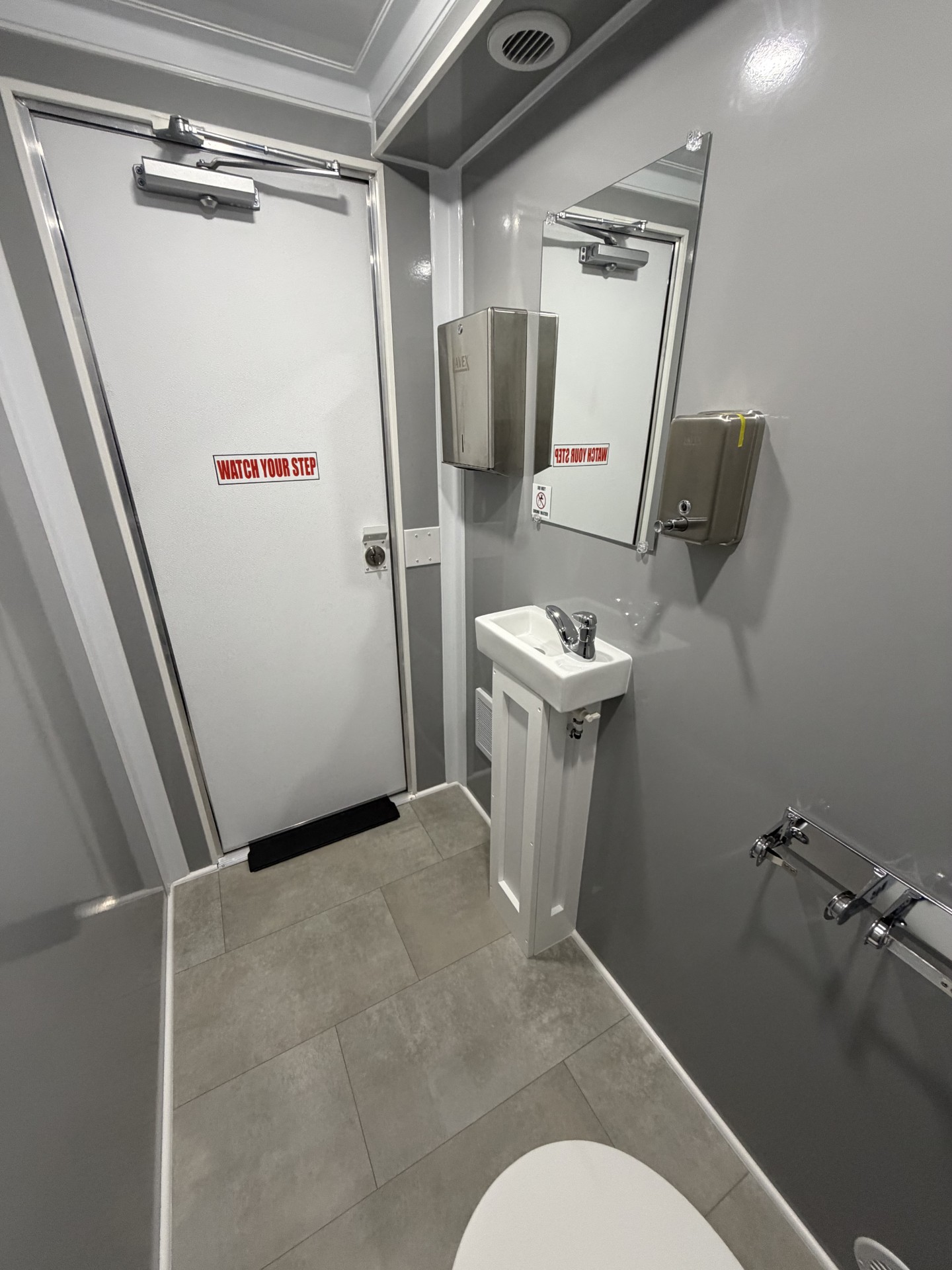

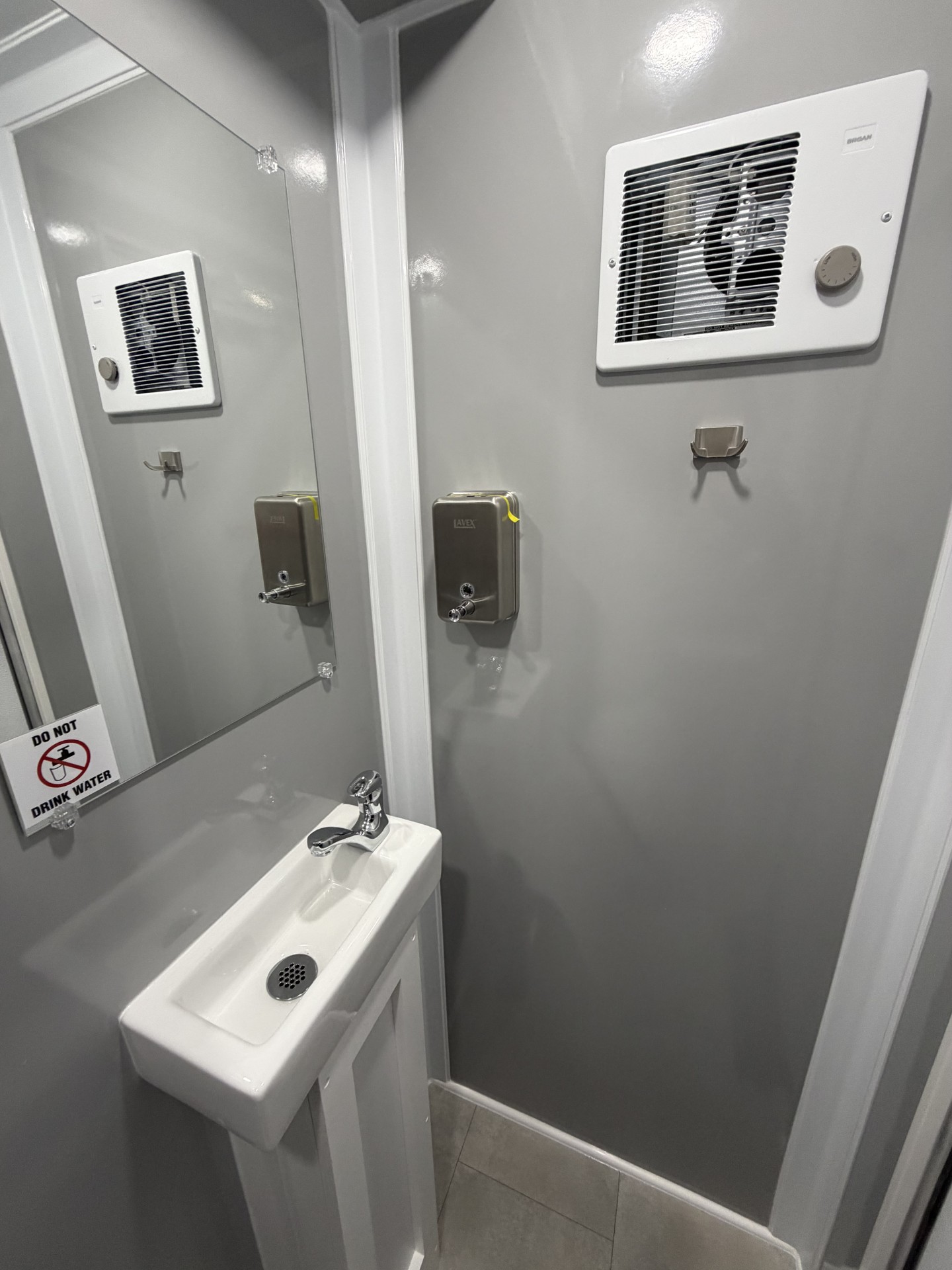

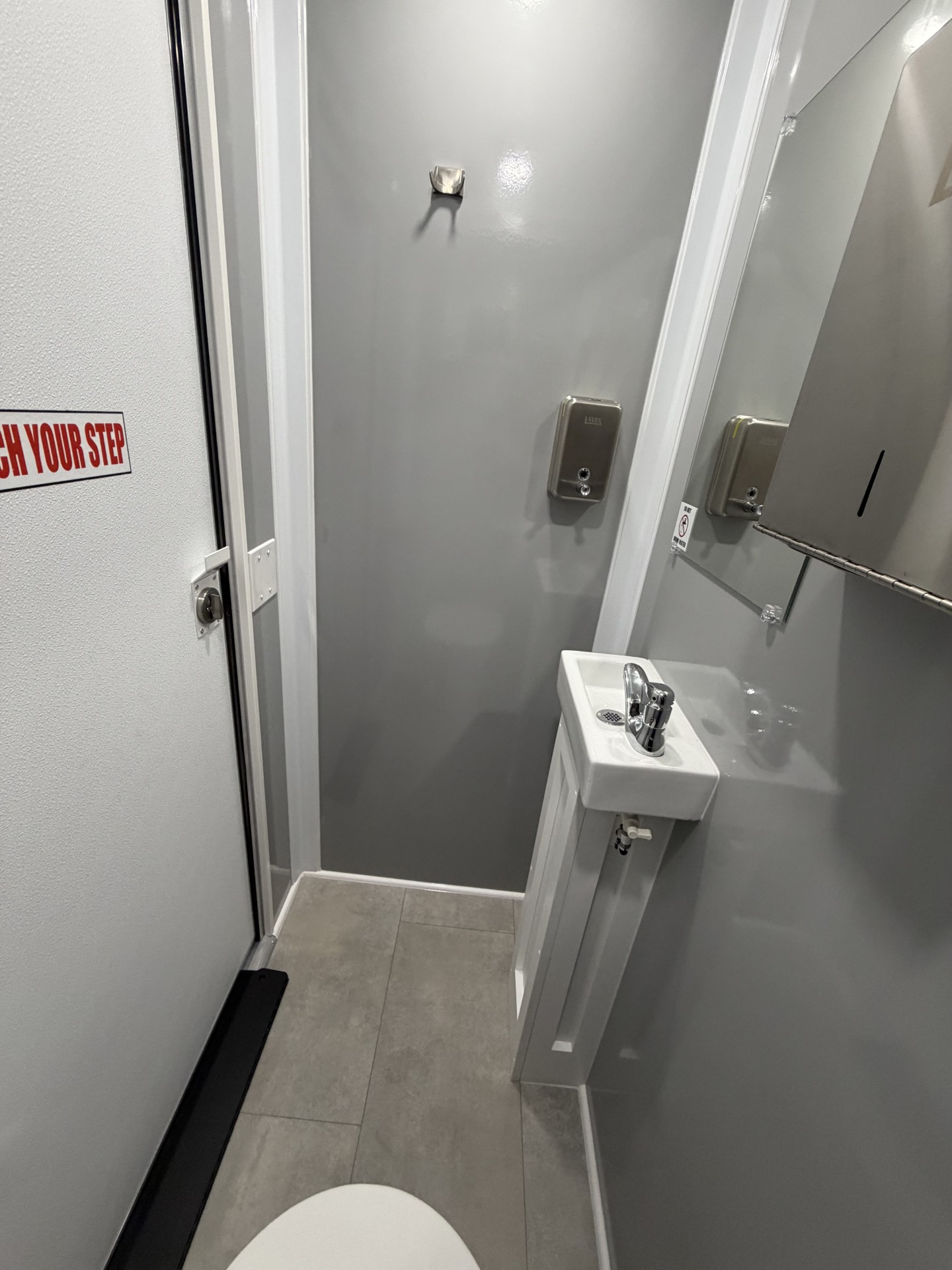

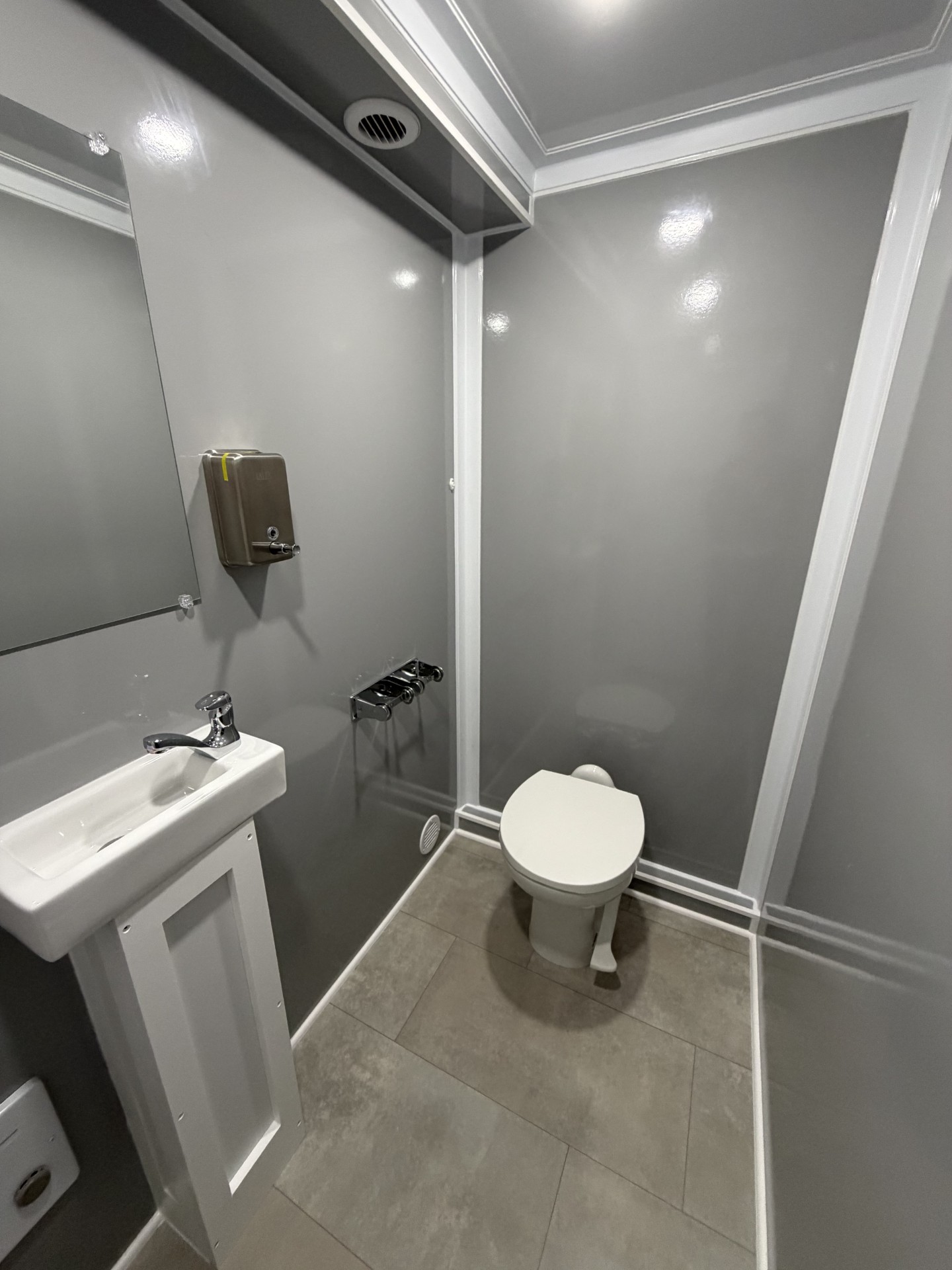

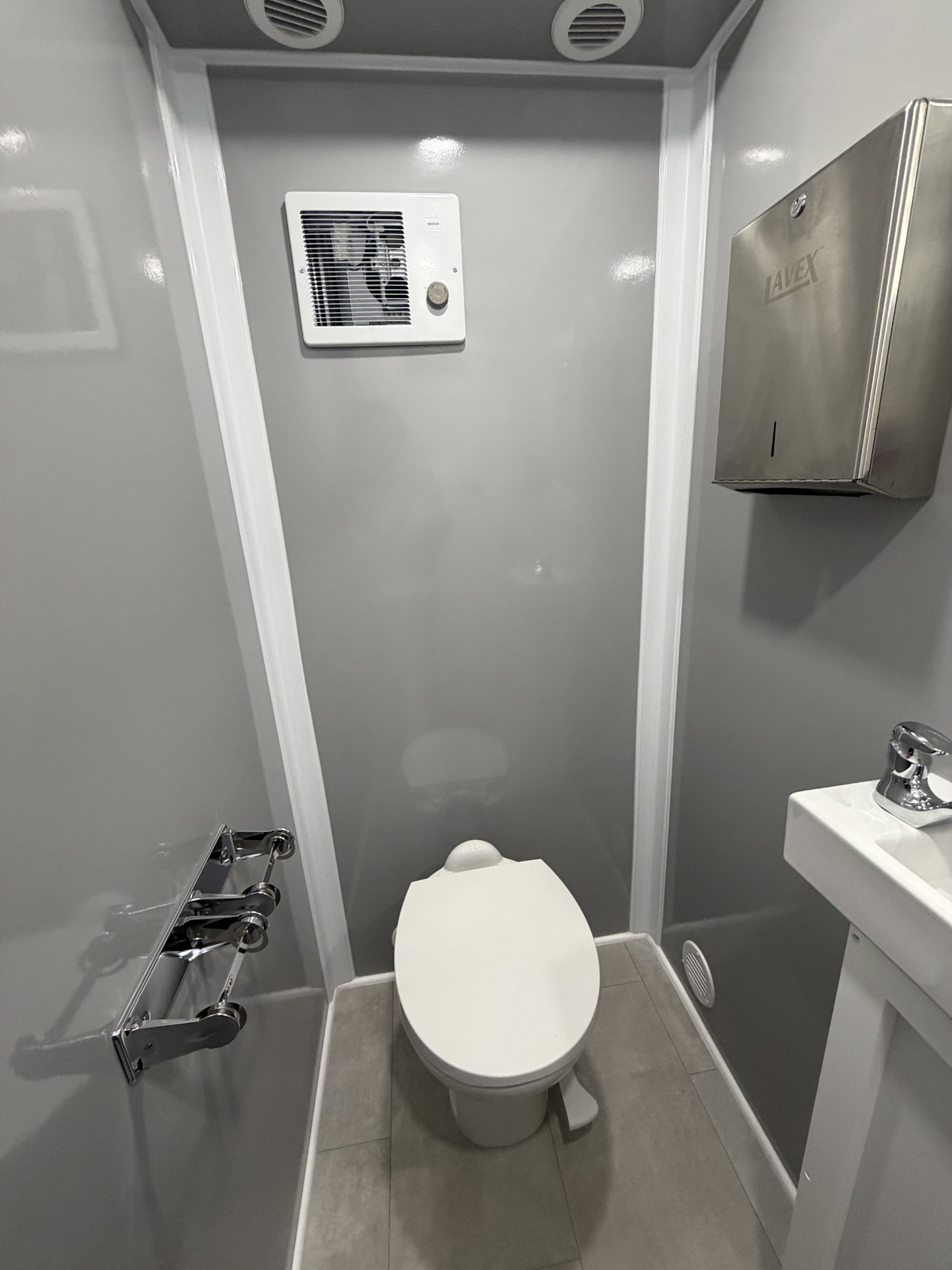

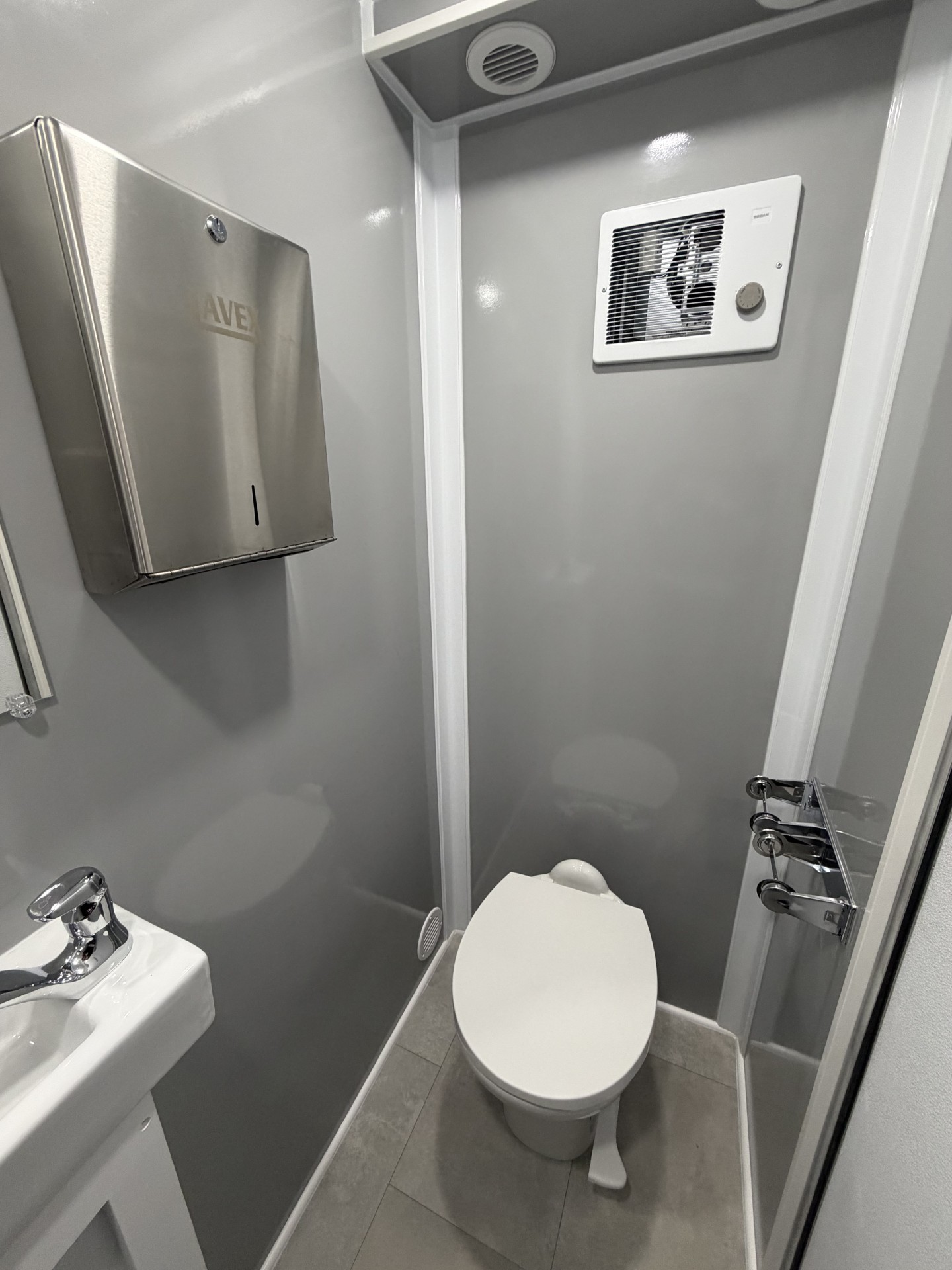

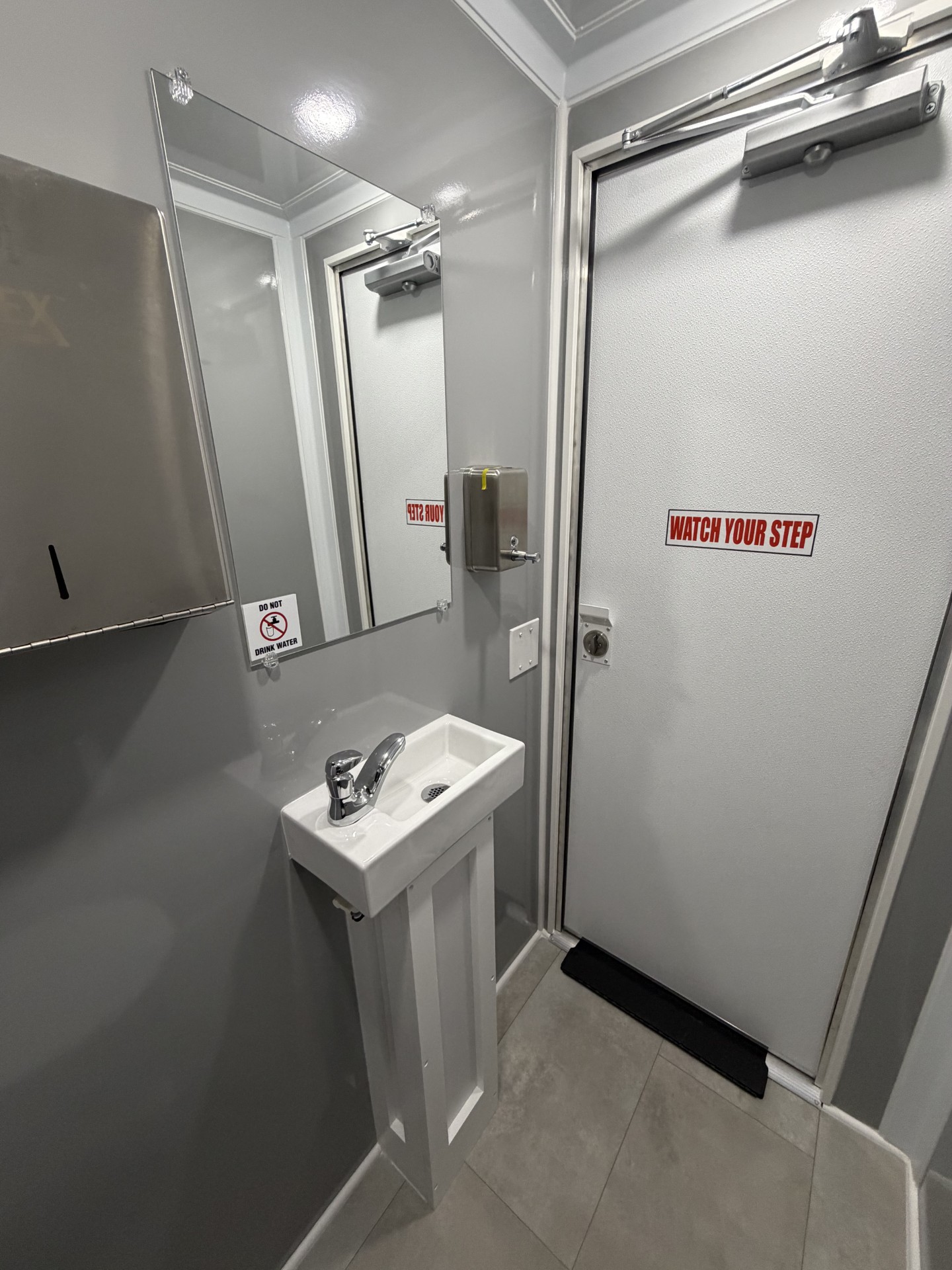

Interior Standard Features

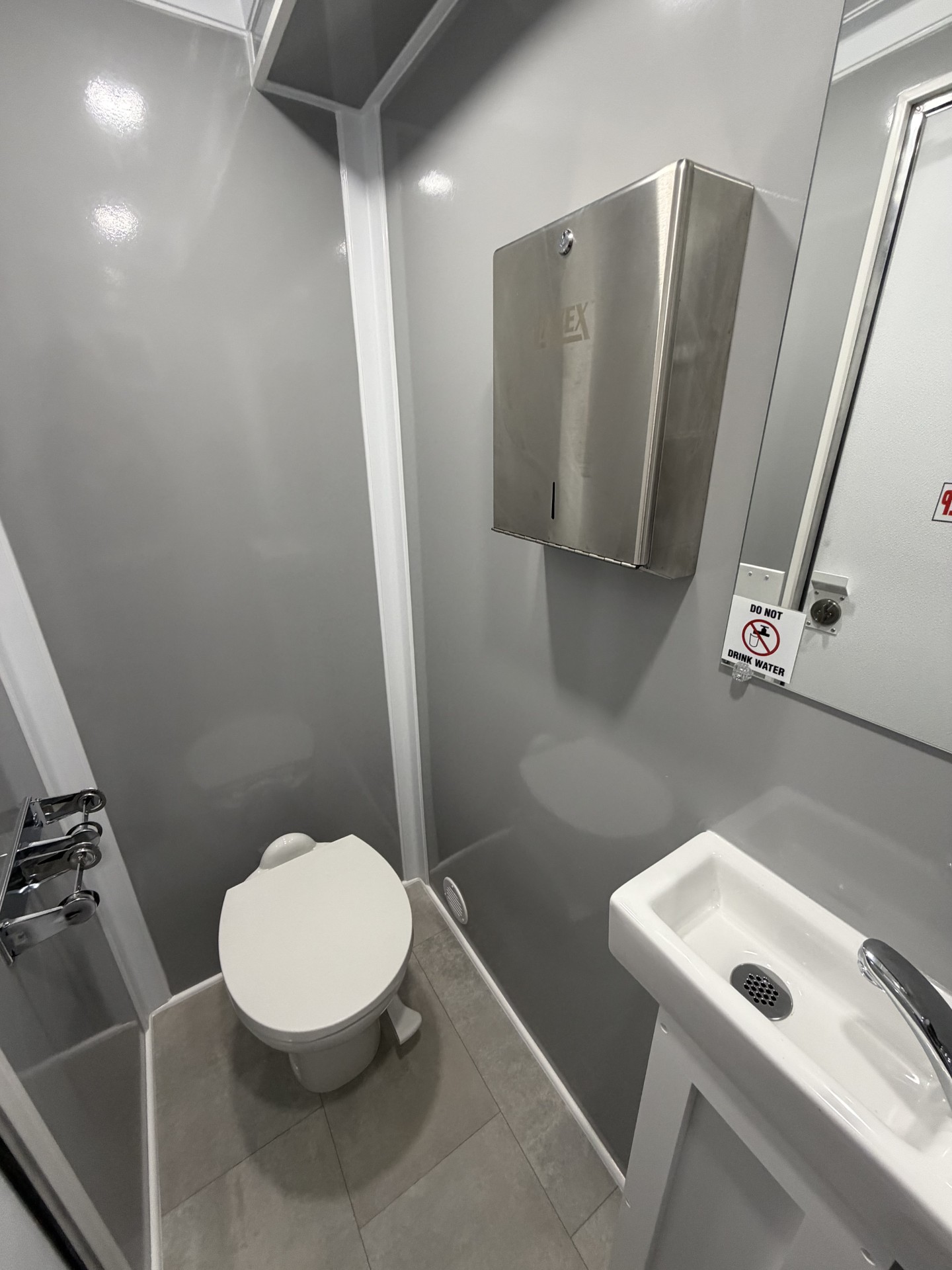

- Smooth durable fiberglass interior on composite backer
- 12 Volt LED lighting – (2) lights per room
- Wall mounted sinks
- Self closing commercial faucets
- Soap dispensers (bulk fill)
- Paper towel dispenser
- Toilet paper holders
- Ultra low water use ceramic bowl pedal flush toilets
- Shatterproof mirrors
- Heavy duty door closers
- 1 Piece transit grade flooring on non-absorbent “Ever Floor”
- Climate control sensor inside restroom

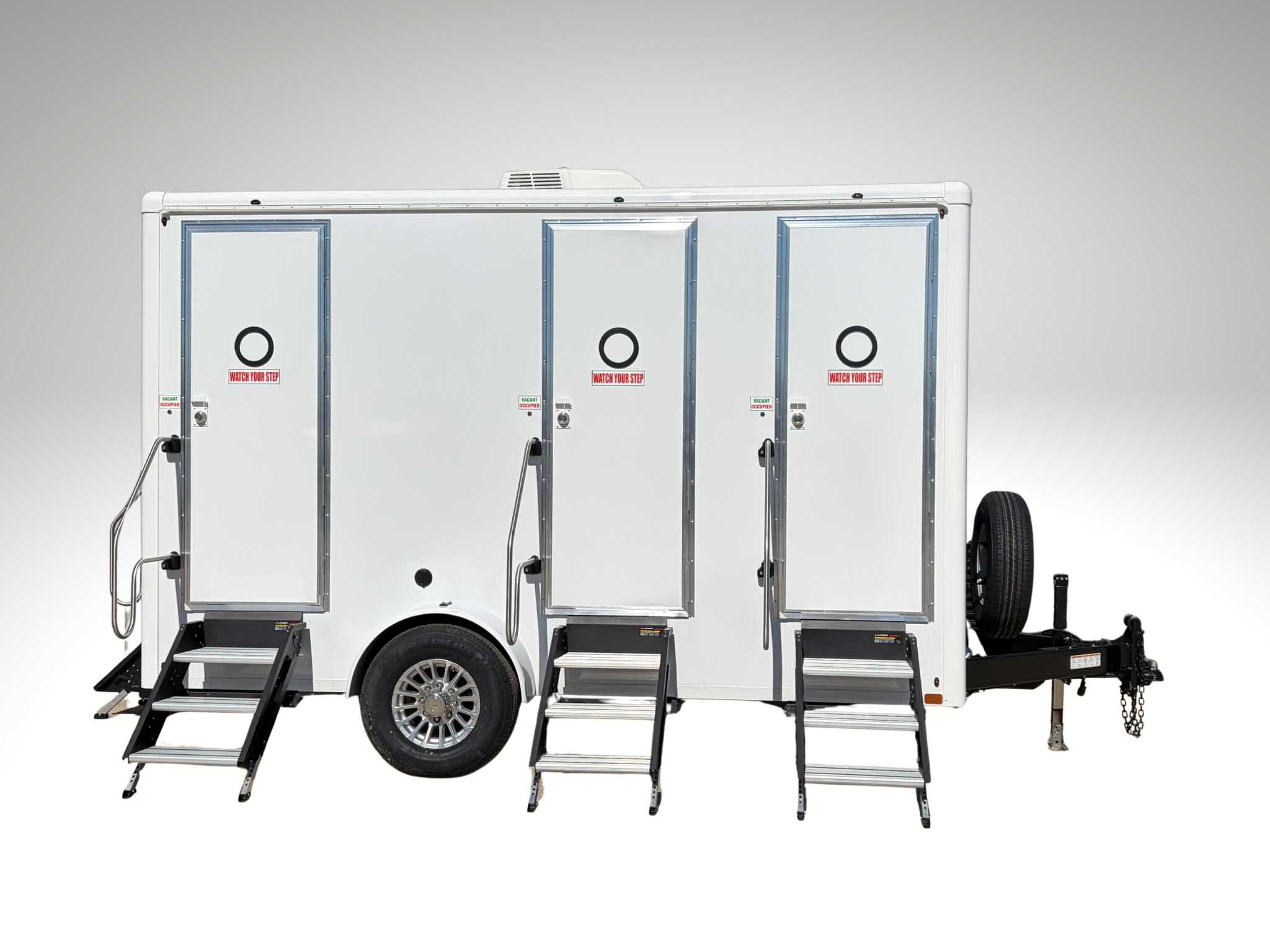

Exterior Standard Features
- 28″ heavy duty entrance doors
- Occupancy lighting
- 1 Piece roof
- Smooth durable fiberglass exterior on composite backer
- Porch lights at all entry doors w/ switch in control room
- Fold down steps with swing-out grab handles
- 3″ quick connect waste tank access valve
- LED waste tank indicator
- 1/2″ co-poly waste tanks
- Large access door in rear for 1″ wash out plug
- City water connection
- 30 amp marine-style power cord
- Roof mounted Air Conditioner w/ heat strip
- Climate control center mounted in control room
- External Spray Port with 30′ hose and nozzle
- Insulated walls and ceiling
- Torsion axle
- Alum wheels with E-rated trailer specific tires nitro-filled
- Matching spare tire with mount
- Full license plate frame with light & screws
- Fresh water fill/diverter (either hydrates the unit or fills the fresh tank)
- Courtesy light above Control Room door
- Powder coated aluminum trim
- 7k tongue jack
- Stabilizer jacks on all (4) corners – scissor jacks on the front and swing downs on the rear
